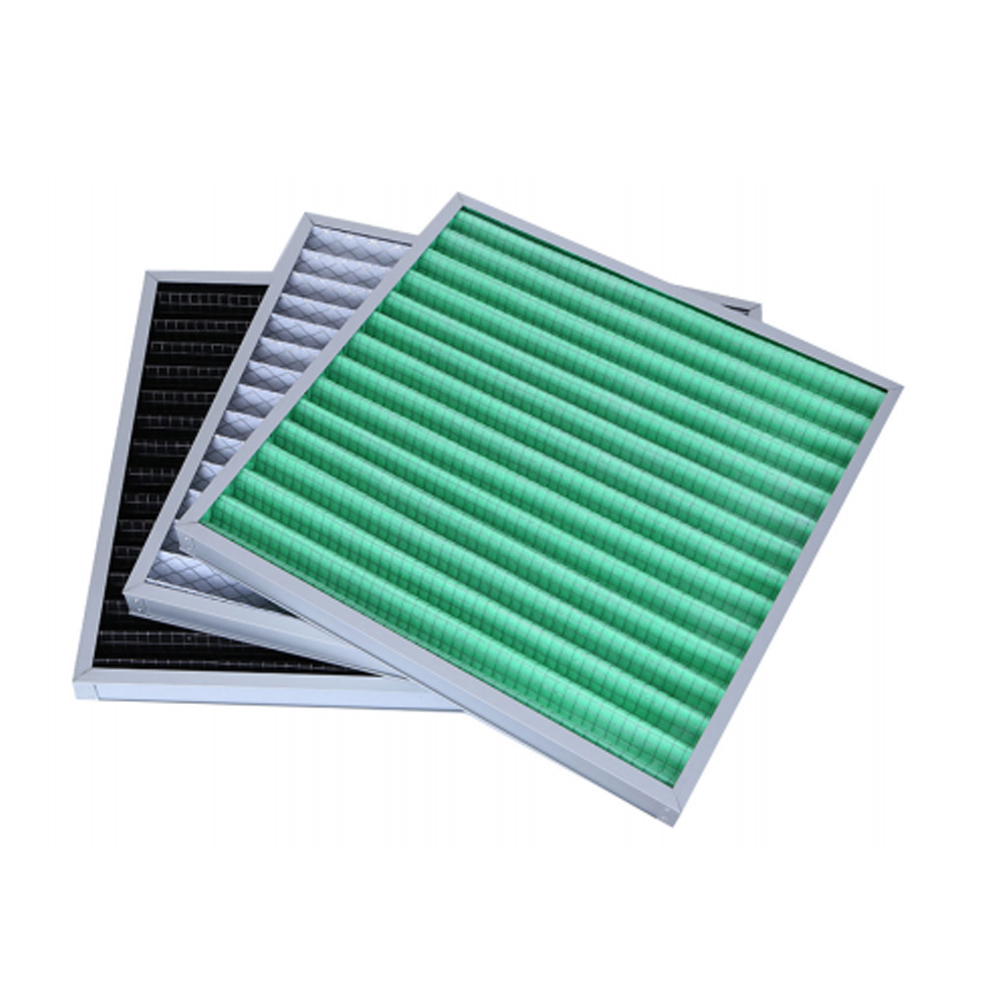

| product name | Plate Pre-Filter | |||||
| product discription | The plate filter is suitable for the primary filtration of air conditioning system. It is mainly used for filtering dust particles above 5um. The filter frame materials mainly include: aluminum profile frame, galvanized plate frame, stainless steel frame, paper frame etc., filter materials include: normal non-woven fabric, nylon mesh, washable nonn-woven fabric etc. | |||||
| thickness | 21mm,46mm or custom-made | |||||
| applicable field | Pre-filtering for air conditioning and ventilation system,avoid dust gathering in system.Pre-filtering for large air compressor,pre-filtering for cleanroom ventilation system and return-wind system to extend HEPA filter use life.Used in ventilation for normal industry workshop to meet usual clean requirement.Pre-filtering for air conditioning system in normal building. | |||||
product feature | large air volume,low resistance,long use life,washable | |||||
| washable time | ≤2 times,only for washable material | |||||
| technical data | ||||||

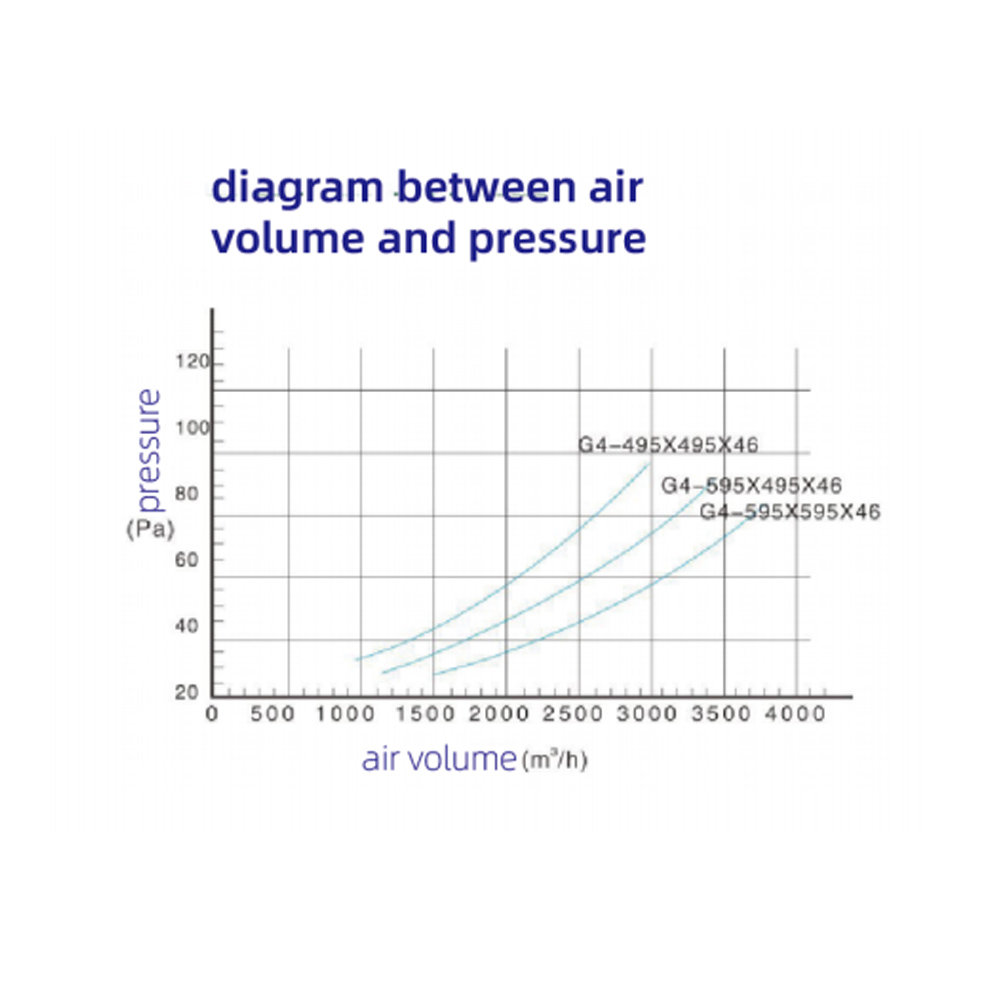

| size | air volume | initial presure(PA) | final presure | efficiency | ||
| W*H*D | m3/h | 70% | 100% | 120% | Pa | 計重法(Weighting method) |
| 595*595*46 | 3200 | 85 | 130 | 175 | 250 | G1—40% |
| 595*495*46 | 2700 | |||||
| 595*295*46 | 1600 | G2—70% | ||||
| 495*495*46 | 2200 | |||||
| 295*295*46 | 800 | G3—85% | ||||
| 其它定制尺寸(other custom-made size) | / | |||||
| / | / | G4—90% | ||||
